硅胶管

硅胶管 硅胶管
产品名称:硅胶管
产品编号:Universal Silicon Hoses Catalogue
详细说明:


 Application for basic replacement, custom turbo, supercharger chargepiping set up, custom compressor, inlet for turbocharged and supercharged cars, vehicles, boats etc.

Welcome custom-built size,length etc.



        Hose Features:

        1) Working temperature: -60 ~ 260 °C

        2) Working Pressure: 0. 3 to 0. 9MPa

        3) Bursting Pressure: 2MPa

        4) Thickness: 2mm to 5mm, 3 ~ 4-ply

        5) Size tolerance:            ±0. 5mm

        6) Standard color: Blue

        7) Color options: Black / red / green / purple / yellow / orange

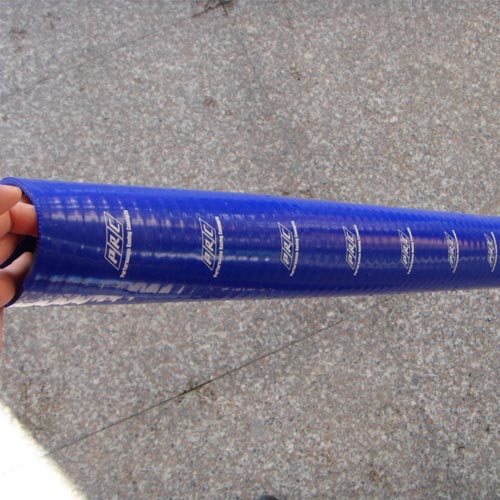

Straight Silicon Hose

Code

ID

L(mm)

          Wall(mm)

(mm)

(inch)

(4ply)

(3ply)

S001

25

1.00

76

5

4

S002

28



76

5

4

S003

30



76

5

4

S004

35



76

5

4

S005

38

1.50

76

5

4

S006

41



76

5

4

S007

45

1.75

76

5

4

S008

48



76

5

4

S009

51

2.00

76

5

4

S010

54

2.15

76

5

4

S011

57

2.25

76

5

4

S012

60

2.36

76

5

4

S013

64

2.50

76

5

4

S014

68



76

5

4

S015

70

2.75

76

5

4

S016

76

3.00

76

5

4

S017

80

3.15

76

5

4

S018

83

3.25

76

5

4

S019

89

3.50

76

5

4

S020

102

4.00

76

5

4

S021

127

5.00

76

5

4













SL01

6

0.24

1000

5

4

SL02

8

0.30

1000

5

4

SL03

10

0.40

1000

5

4

SL04

12

0.47

1000

5

4

SL05

16

0.63

1000

5

4

SL06

25

1.00

1000

5

4

SL07

38

1.50

1000

5

4

SL08

45.00

1.75

1000

5

4

SL09

51

2.00

1000

5

4

SL10

54

2.15

1000

5

4

SL11

57

2.25

1000

5

4

SL12

64

2.50

1000

5

4

SL13

70

2.75

1000

5

4

SL14

76

3.00

1000

5

4

SL15

89

3.50

1000

5

4

SL16

102

4.00

1000

5

4

SL17

127

5.00

1000

5

4

Straight Silicon Reducer

Code

  ID(mm)

L(mm)

Wall(mm)

A

B

 (4ply)

(3ply)

R001

38

51

76

5

4

R002

45

51

76

5

4

R003

51

57

76

5

4

R004

51

60

76

5

4

R005

51mm-76mm (2"-3")

76

5

4

R006

57mm-64mm
 (2.25"-2.5")

76

5

4

R007

57mm-70mm
 (2.25"-2.75")

76

5

4

R008

57mm-76mm
(2.25"-3")

76

5

4

R009

60mm-70mm
 (2.36"-2.75")

76

5

4

R010

64mm-70mm
(2.5"-2.75")

76

5

4

R011

64mm-76mm
(2.5"-3")

76

5

4

R012

64mm-80mm
  (2.5"-3.15")

76

5

4

R013

70mm-80mm
 (2.75"-3.15")

76

5

4

R014

80

90

76

5

4

R015

82

89

76

5

4

R016

89mm-102mm
 (3.5"-4")

76

5

4

R017

102

121

76

5

4

R018

51mm-64mm
 (2.00"-2.50")

76

5

4

R019

64mm-76mm
(2.5"-3")

76

5

4

R020

70mm-76mm
 (2.75"-3")

76

5

4

R021

76mm-80mm
(3.00/3.15)

76

5

4

R022

76mm-83mm
(3.00/3.25)

76

5

4

R023

76mm-89mm
 (3"-3.5")

76

5

4

R024

76mm-95mm
(3.00/3.75)

76

5

4

R025

76mm-102mm
(3"-4")

76

5

4


Hump Silicon Hose

Code

 ID

L(mm)

Wall(mm)

(mm)

(inch)

 (4ply)

(3ply)

H001

51

2.00

76

5

4

H002

57

2.25

76

5

4

H003

60

2.36

76

5

4

H004

64

2.50

76

5

4

H005

70

2.75

76

5

4

H006

76

3.00

76

5

4

H007

83

3.27

76

5

4

H008

89

3.50

76

5

4

H009

102

4.00

76

5

4


Hump Silicon Reducer

Code

 ID(mm)

L(mm)

Wall(mm)

A

B

(4ply)

(3ply)

HR01

38

51

76

5

4

HR02

45

51

76

5

4

HR03

51

57

76

5

4

HR04

51

60

76

5

4

HR05

51

76

76

5

4

HR06

57

64

76

5

4

HR07

57

70

76

5

4

HR08

57

76

76

5

4

HR09

60

70

76

5

4

HR10

64

70

76

5

4

HR11

64

76

76

5

4

HR12

64

80

76

5

4

HR13

70

80

76

5

4

HR14

83

89

76

5

4

HR15

89

102

76

5

4

HR16

102

121

76

5

4

 Silicon Elbow with 45°

Code

ID

L(mm)

Wall(mm)

(mm)

(inch)

(leg)

(4ply)

(3ply)

45°E01

38

1.50

50

5

4

45°E02

45

1.75

50

5

4

45°E03

51

2.00

50

5

4

45°E04

60

2.35

50

5

4

45°E05

64

2.50

50

5

4

45°E06

70

2.75

50

5

4

45°E07

76

3.00

50

5

4

45°E08

80

3.15

50

5

4

45°E09

89

3.50

50

5

4

Silicon Reducer with 45°

Code

 ID(mm)

L(mm)

Wall(mm)

A

B

(leg)

(4ply)

 (3ply)

45°ER01

45

51

50

5

4

45°ER02

51

57

50

5

4

45°ER03

51

60

50

5

4

45°ER04

51

76

50

5

4

45°ER05

57

64

50

5

4

45°ER06

57

70

50

5

4

45°ER07

57

76

50

5

4

45°ER08

60

70

50

5

4

45°ER09

64

70

50

5

4

45°ER10

64

76

50

5

4

45°ER11

64

80

50

5

4

45°ER12

70

80

50

5

4

45°ER13

80

90

50

5

4

45°ER14

83

89

50

5

4

45°ER15

89

102

50

5

4

45°ER16

102

121

50

5

4

 Silicon Elbow with 90°

Code

ID

L(mm)

Wall(mm)

(mm)

(inch)

(leg)

 (4ply)

(3ply)



25



50

5

4

90°E01

38

1.50

50

5

4





1.75

50

5



90°E02

51

2.00

50

5

4

90°E03

57

2.25

50

5

4

90°E04

60

2.35

50

5

4

90°E05

64

2.50

50

5

4

90°E06

70

2.75

50

5

4

90°E07

76

3.00

50

5

4

90°E08

80

3.15

50

5

4

90°E09

89

3.50

50

5

4

90°E10

102

4.00

50

5

4

Silicon Reducer with 90°

Code

 ID(mm)

L(mm)

Wall(mm)

A

B

 (4ply)

(3ply)

90°R01

51

58

50

5

4

90°R02

51

64

50

5

4

90°R03

51

76

50

5

4

90°R04

57

64

50

5

4

90°R05

64

76

50

5

4

90°R06

76

102

50

5

4

90°R07

89

102

50

5

4

90°R08

102

121

50

5

4

Silicon Elbow with 135°

Code

ID

L(mm)

Wall(mm)

(mm)

(inch)

 (4ply)

(3ply)

135°E1

38

1.50

50

5

4

135°E2

45

1.75

50

5

4

135°E3

51

2.00

50

5

4

135°E4

57

2.25

50

5

4

135°E5

60

2.35

50

5

4

135°E6

64

2.50

50

5

4

135°E7

70

2.75

50

5

4

135°E8

76

3.00

50

5

4

135°E9

89

3.50

50

5

4

135°E10

102

4.00

50

5

4

Steel Wire Silicon Hose

Code

ID

L(mm)

Wall(mm)

(mm)

(inch)

 (4ply)

 (3ply)

3SW01

51

2.00

150

5

4

3SW02

64

2.50

150

5

4

3SW03

76

3.00

150

5

4

3SW05

102

4.00

150

5

4

T-Pieces Silicon Hose

Code

ID1

ID2

L1

L2

Wall(mm)

(mm)

(mm)

(mm)

(mm)

(4ply)

T01

25

51

50

102

5

T02

25

57

50

102

5

T03

25

60

50

102

5

T04

25

64

50

102

5

T05

25

70

50

102

5

T06

25

76

50

102

5

T07

25

102

50

102

5
